| Product: | Flat washer Plain washer | Head Drive: | Round |
|---|---|---|---|
| Standard: | DIN, ANSI, GB | Surface Treatment: | Plain Finish, Zinc Plated |
| Grade: | Ss304, Ss316, Ss316L | Type: | A Type |
| Size: | M6-M56 | Material: | Stainless steel |
| Mold No.: | DIN125 DIN9021 F436 | Service: | OEM ODM |
| High Light: | Flat Metal Washers,Galvanized Flat Washers |
||

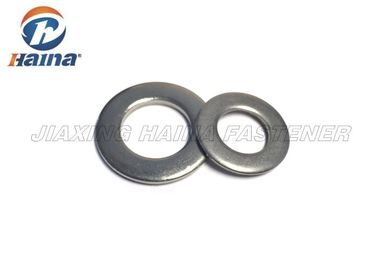

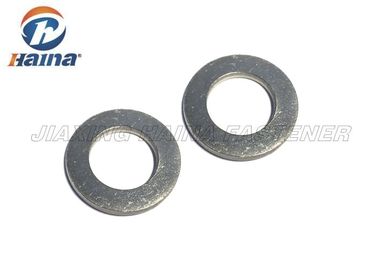

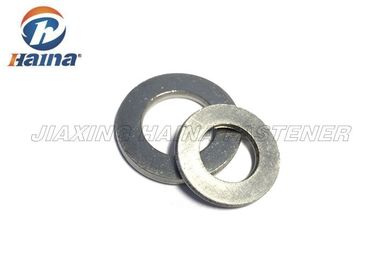

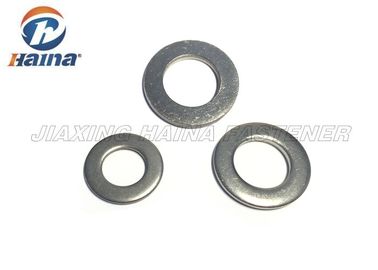

DIN125 DIN9021 F436 Stainless steel Carbon Steel A2 A4 M6-M56 Flat Washer
Description:
Flat washer,which is called plain washer, mainly punched out from iron plates. The common shape of a flat washer is a hole in the central. The pore size specifications according to customer requirements. We can produce as customs request. That is customization. It has many standard: DIN125 DIN9021 F436, ect.
Flat washer is generally used to distribute the load of a threaded fastener, such as a bolt, scres or nut. Other uses are as a spacer, spring (wave washer), wear pad, preload indicating device, locking device, and to reduce vibration , rubber washer. Washers usually have an outer diameter (OD) about twice larger than their inner diameter (ID).
Washers are usually metal and plastic and rubber. High-quality bolted joint require hardened steel washers to prevent the loss of pre-load due to Brinelling after the torque is applied.
We provide Carbon steel flat washer, plain washer, high strength washer, stainless steel flat washer, stainless steel plain washer, flat washer DIN 125 &126 & 127, round washer & Square washer, support customer's special requirements.
| Available Standard | DIN125,DIN126 & DIN127 DIN9021 F436 and etc. |
| Specification | Standard & non-standard |
| Material | Carbon Steel, or Alloy Steel, or copper, or stainless steel as appointed. |
| Grade | SS304 SS316 SS316L Gr4 Gr8 F436 |
| Finish | Zinc Plated, plain finish or as appointed such as Black oxide, Nickel, Chrome etc. |
| Packing | Plastic bag & Double wall carton pack (10,000pcs Appr./ Carton, 30kg Appr./Carton). The on pallet Or do the packing according to customer's requirement. |
| Application | Motorcycle / Buliding / Mechanical Machine / Automobile /Home Decorating etc.. |
| Remarks | Samples are free. |
| Material | Stainless Steel,Carbon steel, or according to customer's requirement |
| Finish | Milled /Tin plating, copper-plating,hot-dip galvanizing, black oxide coating,red anodized,black anodized,painting, powdering,rust preventive oil, titanium alloy galvanized, silver plating, plastic, electroplating, anodizing etc. |
| Testing Equipment | Pull Tester,Automatic Optic Inspector,Projecting apparatus Salt Spray Test, Durometer, and Coating Analyzer,Tensile Machine |
| Management System | ISO9001 |
| Certification | SGS |
| Production Capability | Auto-lathe turning:ODΦ0.5-20mm,Tol.±0.01mm |
| CNC lathe turning:ODΦ0.5-250mm,Tol.±0.005mm | |
| CNC Milling:800x600mm(LxW),Tol.±0.05mm | |
| Grinding:Tol.±0.002mm | |
| Screw heading & rolling:Metric 0.8-M6,Unified Imperial#0-1/4'' | |
| Stamping:200T max |
Application:
1. Increasing the contact area between the screw and the machine.
2. Elimination surface damage of the spring washer in the machine when unloading screw .
Advantages:
1. ISO 9001 certification
2. The fastest response
3. High quality with competitive price
4. Strict quality control system
5. Stainless steel stock
6. Customer's design and logo are welcome
7.100% inspection on critical dimensions with high accuracy +/-0.01-0.05mm
8.Factory direct price and on time delivery
9.Sample available
