Product: | T bolt | Head Drive: | T Head |
---|---|---|---|
Dia.: | M6-M72 1/4"-3" | Surface: | Zinc Plated |
Specification: | DIN Nonstandard | Grade: | Gr4.8 Gr8.8 Gr2 Gr5 |
Color: | White Blue | Technique: | Cold Heading |
Material: | Carbon steel | HS Code: | 7318159090 |
High Light: | Stainless Steel Fasteners,U Clip Fasteners |

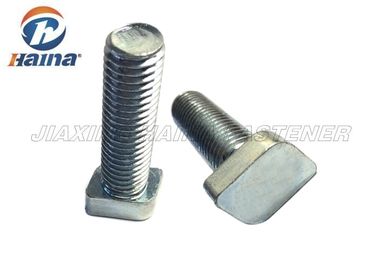

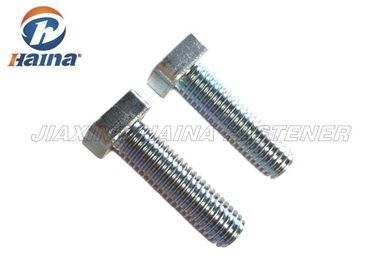

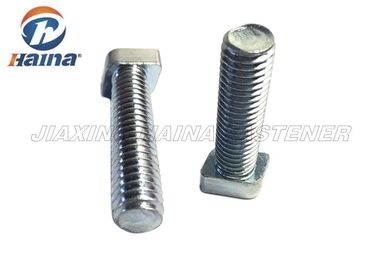

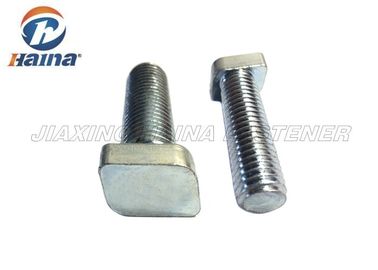

Zinc Plated Carbon Steel Full Thread Metric Customized T Bolts Custom Fasteners
Description:
Customized T Bolts Custom Fasteners is special bolt. The head is in T type. It is different with hex head bolt in shape. But in application, they are almost same. It also has different sizes and stabdards. We can produce as customer's drawing.
Bolt is a mechanical parts, which is a threaded fasteners with a cylindrical nut. Consisting of a head and the screw (externally threaded cylinder) for a class of two-part fastener is required and the nut for fastening two parts with hole. This connection type called bolt connection. As to unscrew the nuts from the bolts, but also so that the two parts separate, it bolted belongs detachable connection. We can provide customs fasteners according to drawing and samples.
Product name | Zinc Plated Carbon Steel Full Thread Metric Customized T Bolts Custom Fasteners |
Materials Available | 1. Stainless Steel: SS201, SS303, SS304, SS316, SS416, SS420 |
2. Steel:C45(K1045), C46(K1046),C20 | |
3. Brass:C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200(CuZn37), C28000(CuZn40) | |
4. Bronze: C51000, C52100, C54400, etc | |
5. Iron: 1213, 12L14,1215 | |
6. Aluminum: Al6061, Al6063 | |
7.OEM according to your request |
Product Name | Zinc Plated Carbon Steel Full Thread Metric Customized T Bolts Custom Fasteners |
Standard: | ASME B 18.2.1, IFI149,DIN931, DIN933, DIN558, DIN960, DIN961, DIN558, ISO4014 and etc. |
Size: | standard & non-standard, spport customized, custom fasteners |
Material: | Carbon Steel, Alloy Steel, Stainless Steel, Brass and etc. |
Grade: | SAE J429 Gr.2, 5,8; ASTM A307Gr.A, Class 4.8, 5.8, 6.8, 8.8, 10.9, 12.9 and etc. |
Thread: | UNC,UNF, Metric Thread |
Finish: | Plain, Zinc Plated(Clear/Blue/Yellow/Black) |
Packing: | Bulk in cartons (25kg Max.)+wood Pallet or according to customer special demand |
Application: | Structural Steel; Metal Buliding; Oil&Gas; Tower&Pole; Wind Energy; Mechanical Machine; Automobile: Home Decorating and etc. |
Application:
The T bolt is consist of a head and the screw (externally threaded cylinder) for a class of two-part fastener is required and the nut for fastening two parts with hole.
Bolt is possible as a railway accessories, railway accessories. Bolts are part of the railway line, the track referred to herein include rails, sleepers, connecting parts, the track bed, anti-climbing equipment, track and switches and other support.
In order to achieve the best possible joint, it is recommended to install the screw through the opposite side of the head, although it is possible to install the screw from the top face side.
Production process: wire rod, wire drawing, drawing, cold forging, threading, dipping, inspection, packing, shipment.
The T head bolts are be used in connecting.
Advantages:
1. Manufacturing Capability
2. Global Market
3. Custom Fasteners
4. Stock
5. Quick Delivery
6. One stop service
