Product Name: | Stock Hex Flange Nylon Insert Lock Nut M16 Carbon Steel Zinc Plated Finish | Material: | C1008 Steel |
---|---|---|---|
Advantage: | Resists Loosening under Vibrations | Thread: | Coarse Thread |
Thread Size: | M16 | Pitch: | 2.0mm |
Grade: | Gr.4.8 | Finish: | Color Zinc Plated |
High Light: | Carbon Steel Nuts,Hex Flange Nuts |
Stock Hex Flange Nylon Insert Lock Nut M16 Carbon Steel Zinc Plated Finish
1.Product Description
A Nylon Insert Hex Flange nut is a kind of Nylon lock nut, which is known as a lock nut, locking nut, prevailing torque nut, stiff nut or elastic stop nut, is a nut that resists loosening under vibrations and torque. Elastic stop nuts and prevailing torque nuts are of the particular type where some portion of the nut deforms elastically to provide a locking action. Lock nuts, jam nuts, lock washes and thread-locking fluid are ways to prevent vibration from loosening a bolted joint. The nylon insert have various colors and is supplied with zinc plated finish. Nylon Insert Hex Flange Nuts can be recycling for more times than a reversible lock nut. Steel nylon insert stop nuts are less expensive than automation lock nuts. A hex flange nut with a nylon filled in it. When a screw or bolt reaches the position, the threads and nylon form a tight frictional fitness, preventing movement between the nut and bolt or screw when subjected to vibration. However, nylon will begin to damaged at temperatures from 150-350 degree centigrade. They allow for a rapid assembly process, thereby increasing process throughput and reducing assembly costs. Be used to construction, machinery construction and other branches. It can be used with bolts,screws and other fasteners without spring and lock washer. The flange povides a reduction of pressure on the surface and special notches give extra tighten torque. This kind of connection has a very high fastness.
2. Specification
Diameter | Pitch | Height | opposite side | Flange Dia. | Flange Thickness |
M16 | 2.0mm | 24mm | 24mm | 31mm | 5mm |
More details:
Product Dimensions | M16x2.0 |
Item Weight | 71.5kg 1000 pieces |
Surface Treatment | Zinc Plated |
Free Sample | Available, shipping need to be charged only |
Thread type | Coarse Thread |
Advantages |
Resists Loosening under Vibrations |
3.Application
Nylon Insert Hex Flange Nuts can be recycling for more times than a reversible lock nut. Steel nylon insert stop nuts are less expensive than automation lock nuts.General Fastening applications where need high strength and superior corrosion resistance. For the joining process required pressure is usually applied manually by the operator or by the machine.
4.Advantages
When a screw or bolt reaches the position, the threads and nylon form a tight frictional fitness, preventing movement between the nut and bolt or screw when subjected to vibration. Common chioce for fastening, which provide high tensile, offering high holding power and corrosion resistance and don't need any coating. Competitive prices with professional factory supply. Perfect fastening solution with 10 years experiences to solve your problem: Wide range of parts selection. Durability testing and critical technical design to enhance fasteners lifetime.

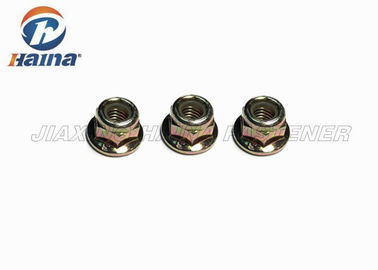

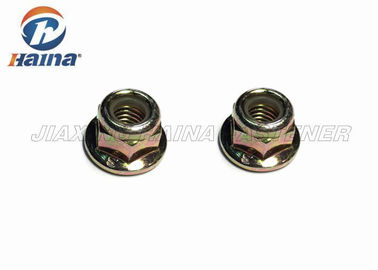

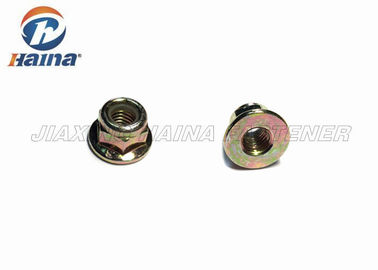

5.More pictures
