Szczegóły Produktu:
Zapłata:
|
Orzecznictwo: | ISO9001 | Material: | carbon steel |
---|---|---|---|
Size: | M8-M16 | Type: | Wood Thread |
Surface Finishing: | White zinc plated | Manufacture Process: | Forged |
package: | carton + pallets | Shipping: | as per customer |
System of Measurement: | Metric | Grade: | 4.8 |
High Light: | Industrial Fasteners,U Clip Fasteners |

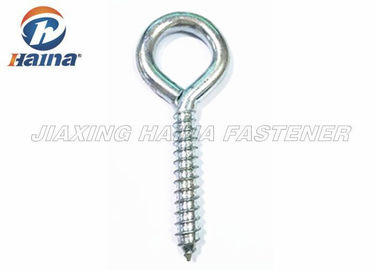

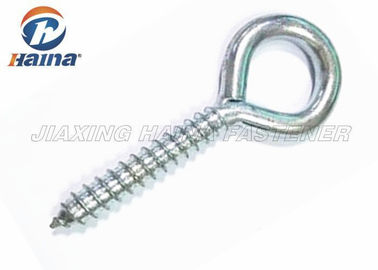

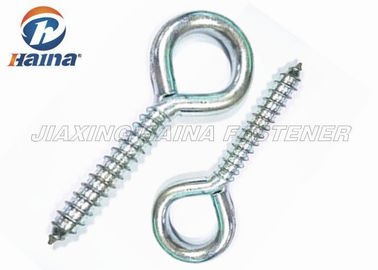

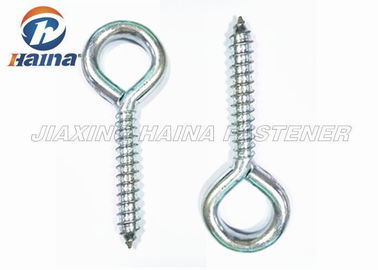

Carbon Steel 4.8 Grade Zinc Plated Heavy Duty Screw Eyes With Welded Eye Wood Thread
1. Product Description
An weld eye screw, referred to as a screw with ring or an eye bolt with special type of screw that is curved into a loop on one end instead of being flat.The eye screw has threads at one end, but not on the top. Instead, a large circle is formed by the bent end of the screw
Weld type eye screw with wood thread or metric thread
1. Materials: low carbon steel, medium carbon steel
2. Grade: 4.8, 8.8, US grade 2, grade 5
3. Standards: non-standard, according to customer's requirement
These eye bolts are formed and welded for a heavy duty anchor point
Often used to attach wire rope or other rigging hardware to a surface or object
Constructed from marine grade type 316 stainless steel
Ideal for marine applications or other harsh environments.
Our company look forward to working with you - to the best products, the lowest price, the best service to meet customer needs.
Team concept: cooperation and enterprising, sincere relationship, common learning and common development;
Development approach: the pursuit of quality, the pursuit of speed, the pursuit of excellence and constant innovation
Welcome to sample or provide drawings, factory for your carefully planned design from the version, manufacturing.
2. Specification
Size (B) |
Inside Eye Diameter (D) |
Overall Length (E) |
Thread Length (F) |
---|---|---|---|
8-32 (A) | |||
1-1/8 | 1/4 | 1-5/8 | 1 |
10-24 (A) | |||
3/4 | 3/8 | 1-1/2 | 3/4 |
1 | 3/8 | 1-3/4 | 7/8 |
1-5/16 | 5/16 | 2 | 1-5/16 |
1-1/2 | 3/8 | 2-1/4 | 1-3/8 |
1-3/4 | 3/8 | 2-1/2 | 1-5/8 |
2 | 3/8 | 2-3/4 | 1-7/8 |
2-1/4 | 3/8 | 3 | 2-1/8 |
12-24 (A) | |||
1-1/2 | 3/8 | 2-3/8 | 1-3/ |
3. Application
It may be used to attach two materials together or simply to hang a picture on a wall. They are also used to hook cables together for supporting objects.The uses for this eye bolt are pretty much self explanatory to those of us who would have any interest in them to start with. Again, the advantage of stainless steel is in terms of its longevity in harsh environments and applications where rust is not desired. One comment of possible value; stainless steel is a metal of choice in red wood constructions. If we recall correctly, the chemical tannic acid in redwood causes standard steels to bleed and discolor the redwood. Swings, benches, arbors, decks and railings are ideal candidates for the stainless hardware offered by Berkeley Point.
4. Advantages
All of our Fastener are designed and manufactured according to buyers’ specification and performance.
Sheep eye socket, sheep eye socket, sheep eye bolt, sheep eye screw, and so on, is widely used in jewelry hanging accessories, is also commonly used in architectural decoration one of the hardware accessories.
These lag thread screw eyes are bolts with a formed closed circular eye fashioned at the non-threaded end and lag threaded screws on the other. Great for light-duty applications, the screw eye is made with steel for strength and is designed to attach cables or rope to surfaces. Use with rope or cable which has the same load rating. Use pre-drilled hole.
